TIG SERIES

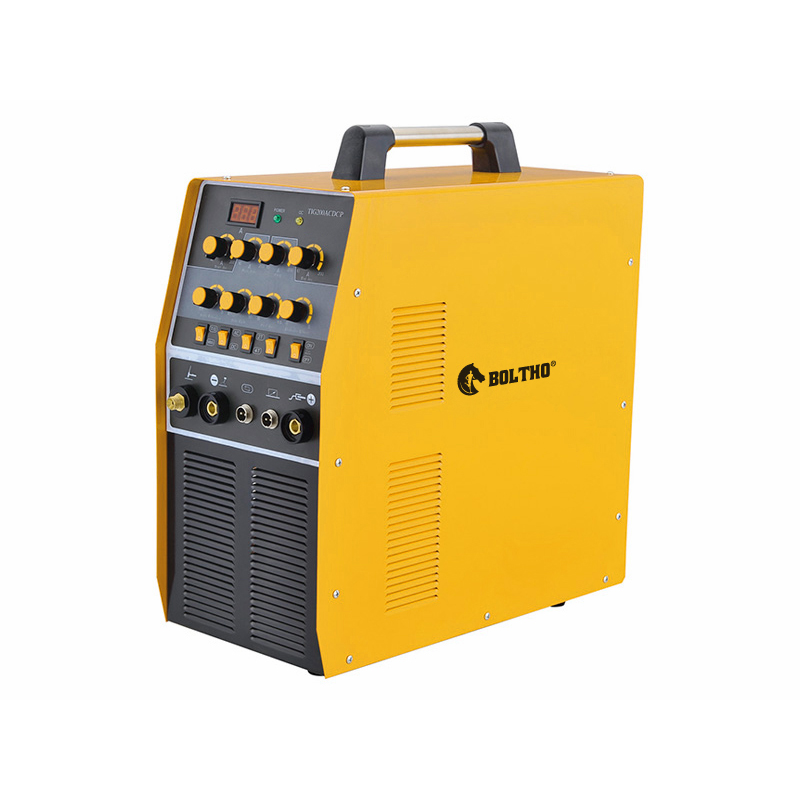

Item Number:TIG200ACDCP
Description
Model TIG200ACDCP TIG250ACDCP TIG315ACDCP
Rated Input Voltage (V) 110/220±15% 380±15% 380±15%
Frequency (HZ) 50/60 50/60 50/60
Rated Input Capacity (KVA) 6.1 6.3 9
Rated Input Current (A) TIG:34 MMA:55.7       TIG:28  MMA43.6 TIG:9.6 MMA:14.4 TIG:13.7 MMA:19.7
No-load Voltage (V) 60 60 60
Range of Output Current (A) TIG:10-140 MMA:20-140 TIG:10-200 MMA:20-200

TIG:10-250 MMA:30-250

TIG:10-315 MMA:30-315

Range of  Output Voltage (V) MIG:10.4-15.6 MMA:20.8-25.6 MIG:10.4-18 MMA:20.8-28

TIG:10.4-20

MMA:21.2-30

TIG:10.4-22.6

MMA:21.2-32.6

Rated Duty Cycle (%) 60 60 60
Efficiency(%) 80 85 85
Power factor 0.73 0.93 0.93
Protection Class IP21 IP21 IP21
Insulation  Class F F F
Dimension (mm) 512*221*510 512*221*510 512*221*510
Weight (kgs) 25 32 38
