TIG SERIES

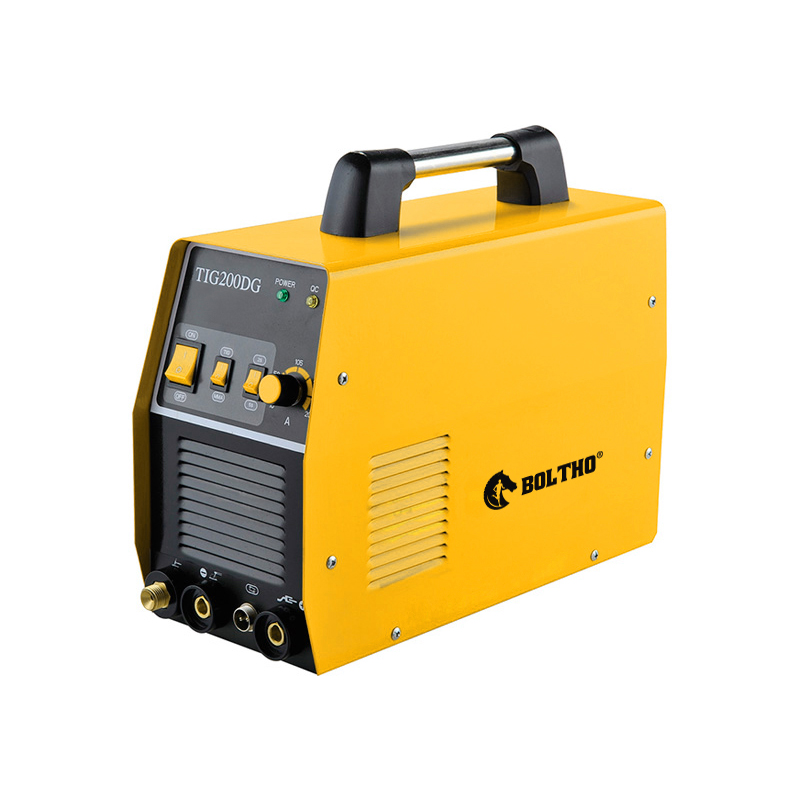

Item Number:TIG160SG
Description
Model TIG160SG  TIG160DG TIG200SG  TIG200DG
Rated Input Voltage (V) 220±15% 220±15%
Frequency (HZ) 50/60 50/60
Rated Input Capacity (KVA) 4.5 6.1
Rated Input Current (A) TIG:20.4 MMA:14.4 TIG:28  MMA:43.6
No-load Voltage (V) 60 60
Range of Output Current (A) TIG:10-160  MMA:20-160 TIG:10-200  MMA:20-200
Range of  Output Voltage (V) TIG:10.4-16.4 MMA:20.8-26.4 TIG:10.4-18 MMA:20.8-28
Rated Duty Cycle (%) 60 60
Efficiency(%) 80 80
Power factor 0.73 0.73
Protection Class IP21 IP21
Insulation  Class F F
Dimension (mm) 405*152*311 405*152*311
Weight (kgs) 8.2 8.2
