CUT SERIES

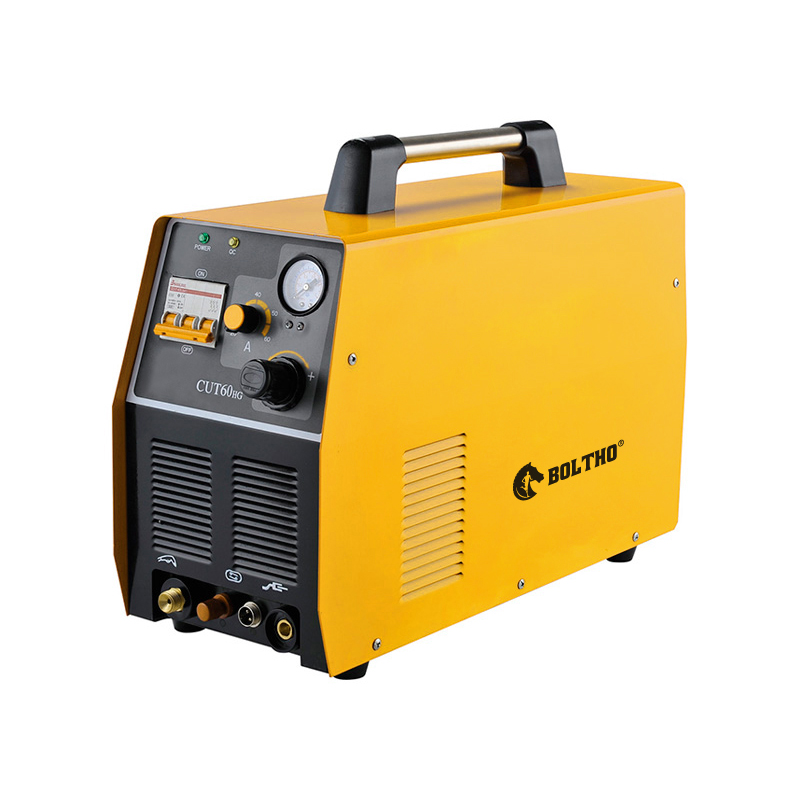

Item Number:CUT60HG
Description
Model CUT60HG CUT60HG
Rated Input Voltage (V) 380±15% 220±15%
Frequency (HZ) 50/60 50/60
Rated Input Capacity (KVA) 7.9 10.6
Rated Input Current (A) 12 48.5
No-load Voltage (V) 290 290
Range of Output Current (A) 20-60 20-60
Range of  Output Voltage (V) 88-104 88-104
Rated Duty Cycle (%) 60 60
Efficiency(%) 85 80
Power factor 0.93 0.73
Protection Class IP21 IP21
Insulation  Class F F
Arc Starting H H
Air Pressure (mpa) 0.35-0.45 0.35-0.45
Max Curtting Thickness(mm) 30 30
Dimension (mm) 465*262*446 465*262*446
Weight (kgs) 35 35
