CUT SERIES

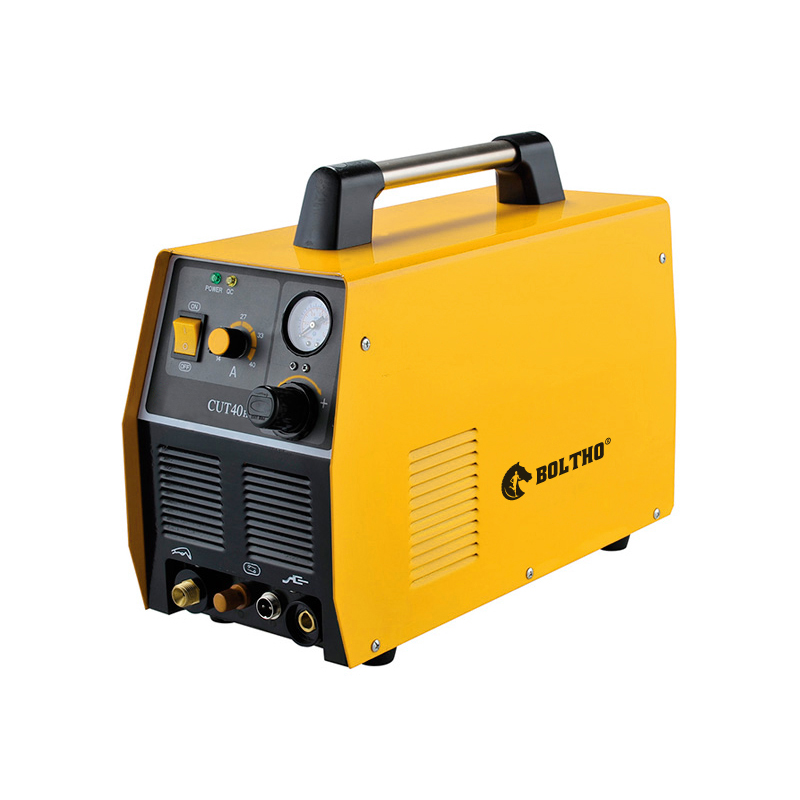

Item Number:CUT30H/CUT40H
Description
Model CUT30H CUT40H
Rated Input Voltage (V) 220±15% 110/220±15%
Frequency (HZ) 50/60 50/60
Rated Input Capacity (KVA) 4.7 6.6
Rated Input Current (A) 21.4 47.8/29.9
No-load Voltage (V) 241 241
Range of Output Current (A) 14-30 14-33/14-40
Range of  Output Voltage (V) 85.6-92 85.6-93.2/85.6-96
Rated Duty Cycle (%) 60 60
Efficiency(%) 80 80
Power factor 0.73 0.73
Protection Class IP21 IP21
Insulation  Class F F
Arc Starting H H/NH
Air Pressure (mpa) 0.3-0.4 0.3-0.4
Max Curtting Thickness(mm) 9 12
Dimension (mm) 449*182*313 449*182*313
Weight (kgs) 8.5 8.5
